PostSubject: [Tutorial] Cheap Molding w/ Scuply   [Tutorial] Cheap Molding w/ Scuply Icon_minitimeSun 29 Mar 2009 - 10:31

Once again, I originally made this article for Kompletely Kroot, but the concept can be applied to other conversions.

How to Build a Master Shaper Headdress:
[Tutorial] Cheap Molding w/ Scuply 100_1903

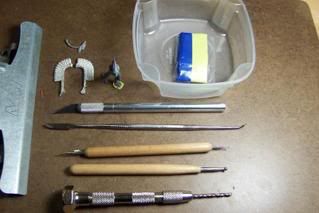

Tools:
[Tutorial] Cheap Molding w/ Scuply 100_1789
• Green Stuff
• Super Sculpey Clay
• Modeling Tools
• Hobby Knife
• Hobby Clippers
• Drill
• Water Basin
• Tin Foil
• Kroot Sprue

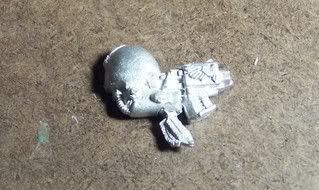

• Deathwing Terminator Arm
[Tutorial] Cheap Molding w/ Scuply 100_1890
• 2 x Ravenwing Pole Banner
Part Code: 9947010119307
Price: $2.00
[Tutorial] Cheap Molding w/ Scuply 100_1792


Make sure the Kroot body is already fully assembled before you attempt to build the Headdress.
(Read my Dynamic Kroot Poses Article for inspiration.)

1) Before the Mold:

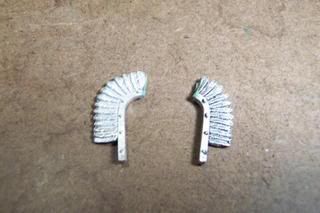

a. Trim the top end of one of the Banner Poles.
[Tutorial] Cheap Molding w/ Scuply 100_1795

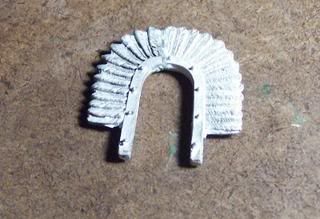

b. Join the Banner Poles in a horseshoe shape using super glue or green stuff.
[Tutorial] Cheap Molding w/ Scuply 100_1888

c. Allow time to let the glue and/or green stuff set.

2) Making the Mold:

a. Warm up some Super Sculpey by compressing it in your hands.
b. Flatten the Super Scupley slightly and place it on some tin foil.
c. The tin foil is important because it will allow you to move the mold to the oven without deforming it.
d. Use one of your sculpting tools as a rolling pin and flatten the Super Sculpey evenly.

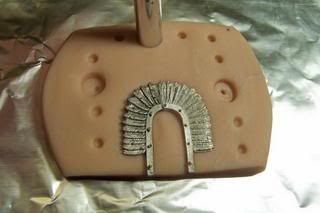

e. Press the horseshoe shaped Banner Pole shallowly into the Super Sculpey.
f. Press the blunt end of your hobby Knife into the Super Sculpey at the outer edges. These indentions will serve as mold guides for the final pressing.
[Tutorial] Cheap Molding w/ Scuply 100_1813

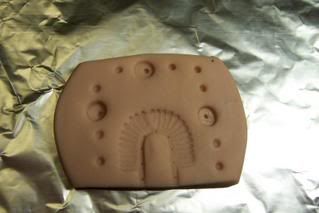

g. Delicately pry the Banner poles loose. Use tweezers at multiple points to draw it out.
[Tutorial] Cheap Molding w/ Scuply 100_1815

h. Preheat the oven to 275 degrees; Place the Super Sculpey along with its tin foil in the oven for 15 minutes.
I. Remove the Super Sculpey from the oven and allow it to cool completely.

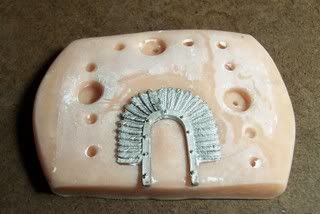

j. Reinsert the banner Poles in the baked Super Sculpey.
[Tutorial] Cheap Molding w/ Scuply 100_1892

k. Warm up another handful of Super Sculpey and then lightly press it on to the Banner Poles. ***Do Not Press It Flat…Yet***
l. Lay down some new tin foil and set the soft side of the mold on it.
m. Now, press the baked mold into the soft Super Sculpey on the tin foil.

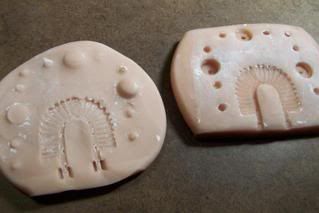

n. Again, gently pry the baked mold and Banner Poles away from the soft clay.
[Tutorial] Cheap Molding w/ Scuply 100_1836

o. Place the second half of the mold in the oven, again at 275 for 15 minutes.
p. Again, allow it to cool completely.
[Tutorial] Cheap Molding w/ Scuply 100_1837


3) Pressing the Headdress:

a. Prepare a basin of water.
b. Mix about an inch of Green Stuff and place it in the water basin.
c. Chill the mold in the refrigerator.
d. I usually just wet the mold with water, but it might be necessary to lightly grease both sides of the mold with a lubricant such as Vaseline or baby oil.
e. Sculpt the Green Stuff into a flattened horseshoe shape and place it on the mold.

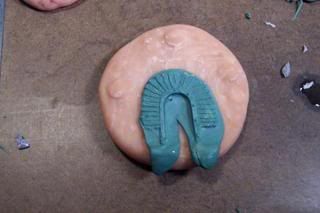

f. Use the guides to line up the two molds and PRESS!
g. Pry the mold apart briskly.
[Tutorial] Cheap Molding w/ Scuply 100_1884

h. Delicately pry the headdress from the mold and then toss it in the water basin.
[Tutorial] Cheap Molding w/ Scuply 100_1845

I. It is very important to keep the headdress & the sculpting tools wet from here on out.

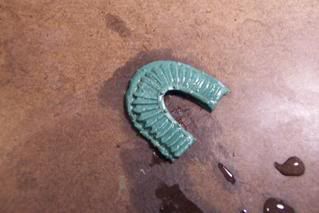

j. Use the Hobby Knife to cut the excess from the bottom of the headdress.
[Tutorial] Cheap Molding w/ Scuply 100_1847

4) Placing and Cleaning the Headdress:

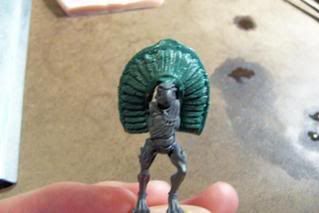

a. Use the sculpting tool to place the headdress slightly in front of the Shaper’s head spines.
b. Prod the sides of the headdress until they are resting on the Shaper’s shoulders.
[Tutorial] Cheap Molding w/ Scuply 100_1853

c. Allow the headdress to harden.
d. Use the Hobby Clippers to clean the flash from ends of the feathers on the headdress.

5) Headdress Embellishments:

a. There are 8 decorations that need to be added to the headdress.
They include:
o 2 pairs of Deathwing feathers made from molds and Green Stuff.
o 1 Green Stuff Headband

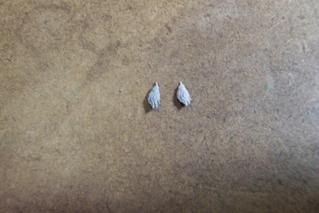

o 2 Kroot gunstrap foxtails
[Tutorial] Cheap Molding w/ Scuply 100_1874

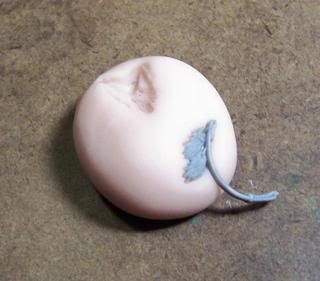

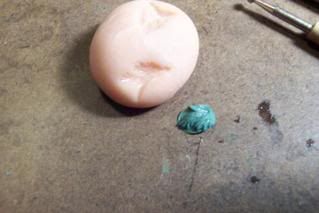

o 1 Kroot gunstrap foxtail made from molds and Green Stuff
[Tutorial] Cheap Molding w/ Scuply 100_1827[Tutorial] Cheap Molding w/ Scuply 100_1871

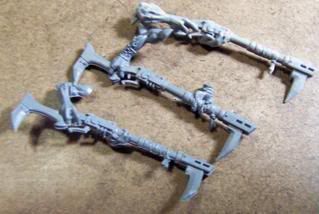

o 2 Kroot gun wrap Knots
[Tutorial] Cheap Molding w/ Scuply 100_1832

b. The Knot and 2 Foxtails can simply be cut from the relevant parts.
c. The Green Stuff items can be made using a simple one part mold.
d. The one part mold in just a wad of Super Sculpey that has had the relevant bits pressed into it. Bake the Super Sculpey at 275 for 15 minutes, allow cooling time, and press the mold.

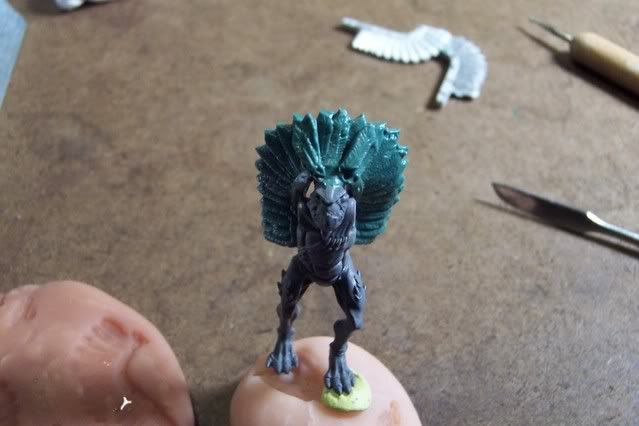

e. First, place the two Green Stuff feathers at the peak of the Headdress, above the Shaper’s face.
[Tutorial] Cheap Molding w/ Scuply Headdress

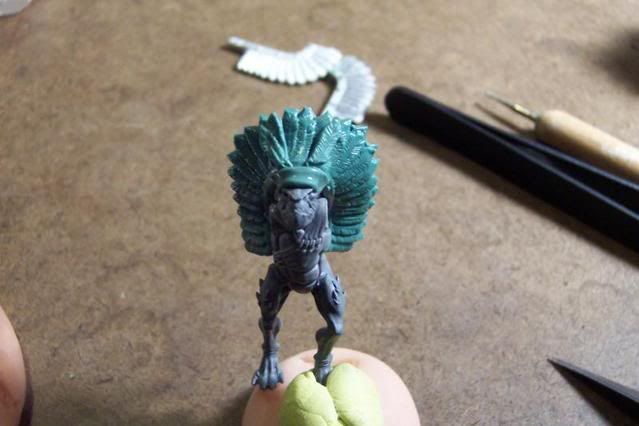

f. Roll and flatten a short Head band and place it over the Shaper’s forehead.
[Tutorial] Cheap Molding w/ Scuply 100_1867

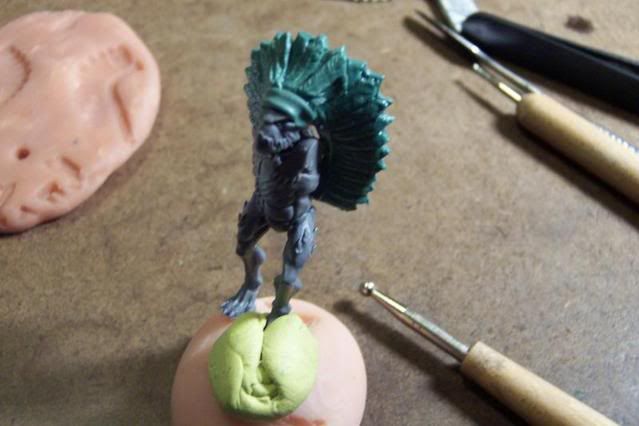

g. Make two indentions on either side of the headband and then place the knots into them.
[Tutorial] Cheap Molding w/ Scuply 100_1869

h. Superglue the 2 plastic foxtails below the knot like earings.

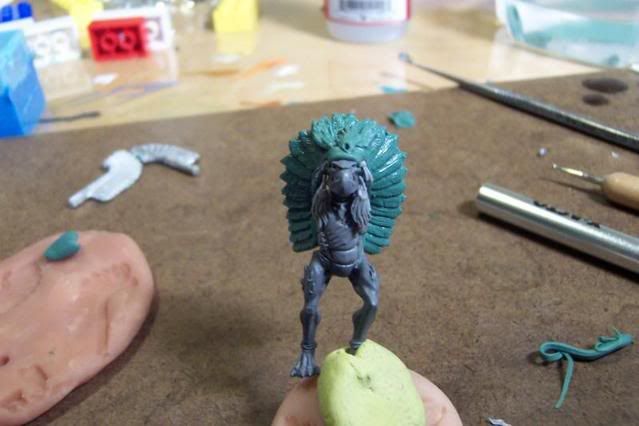

I. Lastly, place the Green Stuff foxtail at the center of the headband.
[Tutorial] Cheap Molding w/ Scuply 100_1883

j. Allow the headdress to harden.

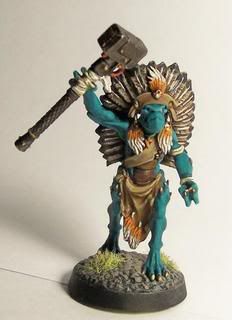

Here is the finished product:

[Tutorial] Cheap Molding w/ Scuply 100_1903[Tutorial] Cheap Molding w/ Scuply 100_1906

The Loincloth & Backpack

I started by cutting off the back portion of the GW Shaper's sash. You could also leave it on but it may change the mold a bit.
[Tutorial] Cheap Molding w/ Scuply ShaperGW

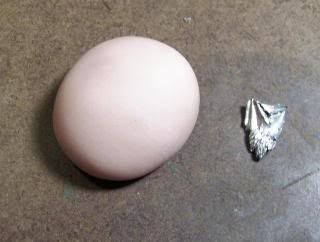

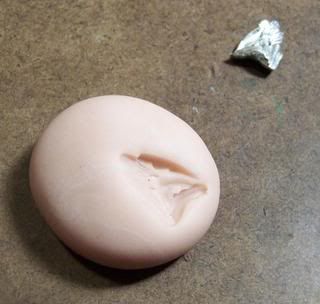

Next, I took the sash and pressed it into the Super Sculpey as shown below:
[Tutorial] Cheap Molding w/ Scuply 100_1820[Tutorial] Cheap Molding w/ Scuply 100_1823

After baking the Super Sculpey I pressed green stuff into the mold, pulled it out and trimmed it as previously described.

Lastly, I applied the new loincloth to the Shaper and added two Kroot gun knots, also as described above.

The backpack was made in a the exact same manner. The model which I molded was this Mordheim Dreg.

[Tutorial] Cheap Molding w/ Scuply Dregq
Back to top Go down
Admin Tom
Admin
Admin
Admin Tom


Posts : 2596
Trading Reputation : 12
Join date : 2007-08-25
Location : Austria/Switzerland

Personal Info
Primary Warband played: Witch Hunters Witch Hunters
Achievements earned: none

[Tutorial] Cheap Molding w/ Scuply Empty
PostSubject: Re: [Tutorial] Cheap Molding w/ Scuply   [Tutorial] Cheap Molding w/ Scuply Icon_minitimeSun 29 Mar 2009 - 12:20

Excellent Tutorial UnderBheit! Thank you very much for sharing. I love the "275°C (and not one degree more)" bit ... Very precise Wink

_________________
[Tutorial] Cheap Molding w/ Scuply Banner10
Back to top Go down
http://boringmordheimblog.blogspot.com
cianty
Honour Guard
Honour Guard
cianty


Posts : 5284
Trading Reputation : 5
Join date : 2007-09-27
Location : Berlin

Personal Info
Primary Warband played: Monks (BTB) Monks (BTB)
Achievements earned: Silver Tom Silver Tom

[Tutorial] Cheap Molding w/ Scuply Empty
PostSubject: Re: [Tutorial] Cheap Molding w/ Scuply   [Tutorial] Cheap Molding w/ Scuply Icon_minitimeSun 29 Mar 2009 - 13:05

Great tutorial! Thanks! thumbsup
Back to top Go down
http://cianty-tabletop.blogspot.com/
matt
Honour Guard
Honour Guard
matt


Posts : 1053
Trading Reputation : 4
Join date : 2007-11-10
Age : 28
Location : Castricum, The netherlands

Personal Info
Primary Warband played: Marauders (BTB) Marauders (BTB)
Achievements earned: none

[Tutorial] Cheap Molding w/ Scuply Empty
PostSubject: Re: [Tutorial] Cheap Molding w/ Scuply   [Tutorial] Cheap Molding w/ Scuply Icon_minitimeSun 29 Mar 2009 - 15:05

great tutorial! I'll surely try this stuff too Smile
too bad I don't know what 'super sculpy' is called in dutch Sad

_________________
..and by a roll of the dice you go under..
Back to top Go down
Guest
Guest
Anonymous



[Tutorial] Cheap Molding w/ Scuply Empty
PostSubject: Re: [Tutorial] Cheap Molding w/ Scuply   [Tutorial] Cheap Molding w/ Scuply Icon_minitimeSun 29 Mar 2009 - 18:03

matt wrote:
great tutorial! I'll surely try this stuff too Smile
too bad I don't know what 'super sculpy' is called in dutch Sad

Do you have FIMO? It is a similar compound.
