PostSubject: Siren's Silence   Fri 30 Jul 2010 - 1:41

Of late i have been playing around with techniques for building balsa wood ships for a dock section of mordheim.
Having finished a small vessle a few days ago, as a test for idea's i had intented on building one after the other slowly getting large and more detailed as i went... Well that having gon out the window went my current project grew to large I have taken to builing a modular ship of fairly large proportions.

and way my first atempt was at a cargo barge.


now for the to be gun deck of my new ship (sirens silence)

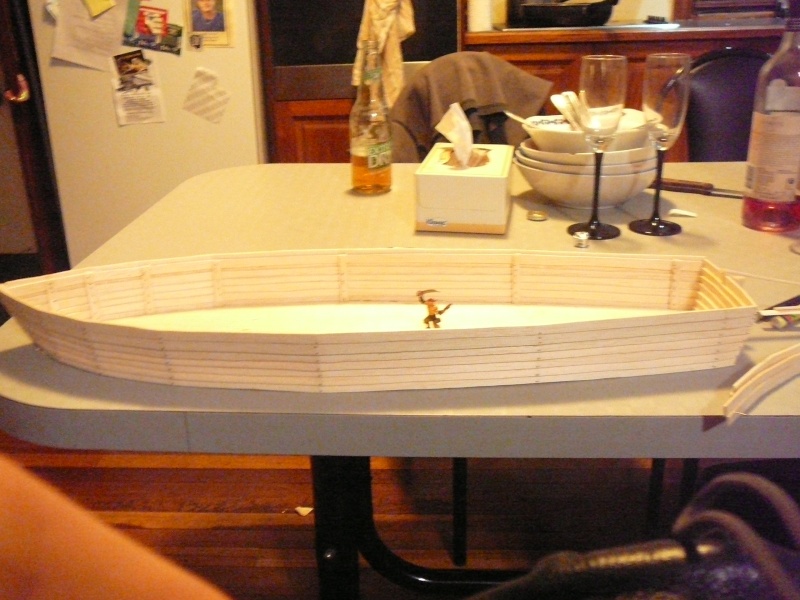

was made by cutting strips of 2mm balsta wood the same size, then marking and bending/cracking them along there lenght to create the curve of the hull. once i had enough of them made i simpaly overlapped them and glued them in place pinning them with small fabric pins to add effect. once two side of the hull where completei added support strips on the inside of the bends and pinned them to add some strenght. then i joined them at the bow with a squre section of basla wood, and added a rear piece to join them at the stern using the same techniques.

then i had the basic hull i traced out a floor out of some 5mm sheet cutting it to shape and test fitting it as i went.

i build a lip on the in side of the hull usint the same strips that make it to allow another deck to sit on top.
will post more progress soon.
